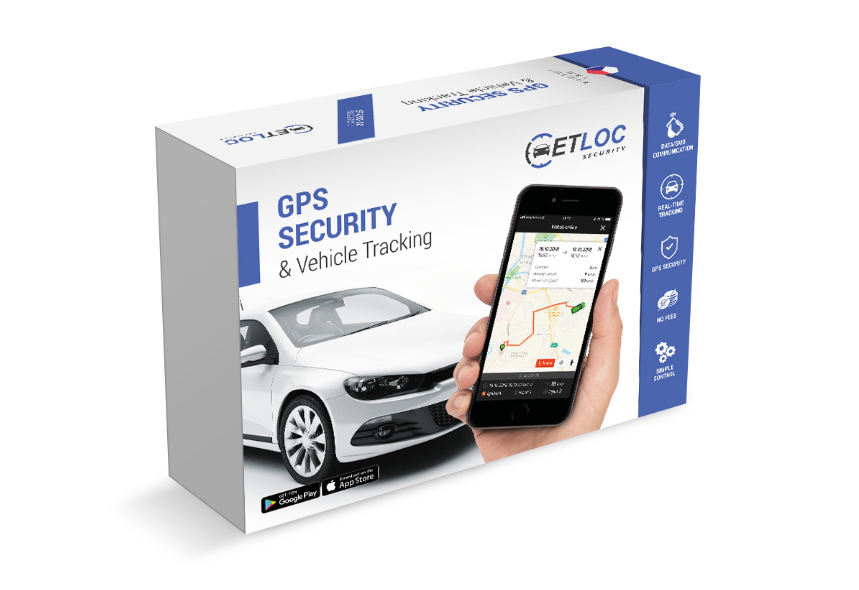

ETLOC - 50CS

The ETLOC-50 CS is a compact GPS/GSM communication unit designed to monitor vehicle activity online in real time.
188.00 €
169.00 €
decrease increase

TECHNICAL SPECIFICATION


GSM

    Quad-Band GSM 850/900/1800/1900MHz
    GPRS multi-slot class 12/10
    – Class 4 (2 W @ 850/900MHz)
    – Class 1 (1 W @ 1800/1900MHz)
    Micro SIM
    Integrated GSM antenna
    Optional version ETLOC-50E CS with external GSM antenna

GPS

    22 tracking / 66 acquisition - channel GPS receiver GPS L1, C/A Code
    Cold starts: 32s (typical)
    Warm starts: 3s
    Hot starts: <1s
    Accuracy: Automatic Position3: 2.5m CEP
    Optional version with GPS/GLONASS/GALILEO/QZSS

Power consumption

    Ready – the device is ON and responds to all commands (GPS is OFF) – max. 17mA
    GPS is ON – the device is ON and responds to all commands (GPS is ON) – max. 24mA
    STAND BY – the device is OFF until the ignition is turned on – 0mA

Power supply

    +12/24V DC
    Backup battery 6V 1,3Ah

Output

    Switching Relay – the maximum current carrying capacity of the switching relay is 12/24V DC/5A (max 60W)
    STOP output - max 350mA

Input

    Ignition (+12/24V)
    RFID reader
    BUSINESS/PRIVATE journeys (GND)
    INPUT3 (+12/24)
    INPUT4 (GND)

Weight and dimensions

    Low weight – 51g
    Small dimensions 84x54x20 mm

Operation temperature

    -40 °C to +85°C

Certifications

    EHK-10
    CE
    RoHS

TECHNICAL SPECIFICATION


GSM

    Quad-Band GSM 850/900/1800/1900MHz
    GPRS multi-slot class 12/10
    – Class 4 (2 W @ 850/900MHz)
    – Class 1 (1 W @ 1800/1900MHz)
    Micro SIM
    Integrated GSM antenna
    Optional version ETLOC-50E CS with external GSM antenna

GPS

    22 tracking / 66 acquisition - channel GPS receiver GPS L1, C/A Code
    Cold starts: 32s (typical)
    Warm starts: 3s
    Hot starts: <1s
    Accuracy: Automatic Position3: 2.5m CEP
    Optional version with GPS/GLONASS/GALILEO/QZSS

Power consumption

    Ready – the device is ON and responds to all commands (GPS is OFF) – max. 17mA
    GPS is ON – the device is ON and responds to all commands (GPS is ON) – max. 24mA
    STAND BY – the device is OFF until the ignition is turned on – 0mA

Power supply

    +12/24V DC
    Backup battery 6V 1,3Ah

Output

    Switching Relay – the maximum current carrying capacity of the switching relay is 12/24V DC/5A (max 60W)
    STOP output - max 350mA

Input

    Ignition (+12/24V)
    RFID reader
    BUSINESS/PRIVATE journeys (GND)
    INPUT3 (+12/24)
    INPUT4 (GND)

Weight and dimensions

    Low weight – 51g
    Small dimensions 84x54x20 mm

Operation temperature

    -40 °C to +85°C

Certifications

    EHK-10
    CE
    RoHS

Products specifications
Type GPS Tracker
